Our Magnetic Crawler Robot

Wallhiker® series of robots came from AKA’s continuous R&D investment and thousands of projects success. It perfectly integrates cleaning/blasting/coating moudule, magnetic adsorption, intelligent wireless remote control algorithms, and machine vision technologies. Wallhiker® can work for UHP/HP hydroblasting, sandblasting, derusting, inspection, cleaning, painting and sanding. It provides a systematic robotic solutions to the routine maintenance of ship hulls, ship cargo hold, storage tanks, water tanks, wind turbine towers and offshore platforms.

UHP Hydro Blasting Robot

AKA Robotics UHP hydroblasting series of magnetic crawler robot is engineered for heavy steel surface preparation, including ship hulls, storage tanks internal & external surface. UHP hydroblasting utilize ultra high pressure water jet force to efficiently and thoroughly remove rust and heavy paint from steel surface for a longevity new coating application.

WallHiker W-06 Ultra High Pressure Hydroblasting Magnetic Crawler Robot
WallHiker W-06

Ultra high pressure hydro blasting solution

  • dimension 655x940x365mm
  • cleaning width 250/300mm
  • max water pressure 3000 Bar
WallHiker W-03 PRO UHP hydro blasting magnetic crawler robot
WallHiker W-03 PRO

Slim version hydroblasting robot for confine space

  • dimension 1000x430x320mm
  • cleaning width 380mm
  • max water pressure 3000 Bar
WallHiker EX-02 Explosion Proof UHP hydroblasting magnetic crawler robot
WallHiker EX-02

Explosion proof UHP hydroblasting robot

  • dimension 1000x990x560mm
  • cleaning width 250/300mm
  • max water pressure 3000 Bar
WallHiker H-01 Pro

Semi-automation UHP hydroblasting equipment

  • dimension 2300x490x530mm
  • cleaning width 250/300mm
  • max water pressure 3000 Bar

Sandblasting Robot

WallHiker series of sandblasting magnetic crawler robot can blast vertically, horizontally, or upside down using 2–3 nozzles, supports larger nozzles for faster work, and keeps operators safe on the ground with wireless remote control and fall arrest systems. Our sandblasting robot widely apply in ship repair and tank maintenance industrial blasting projects.

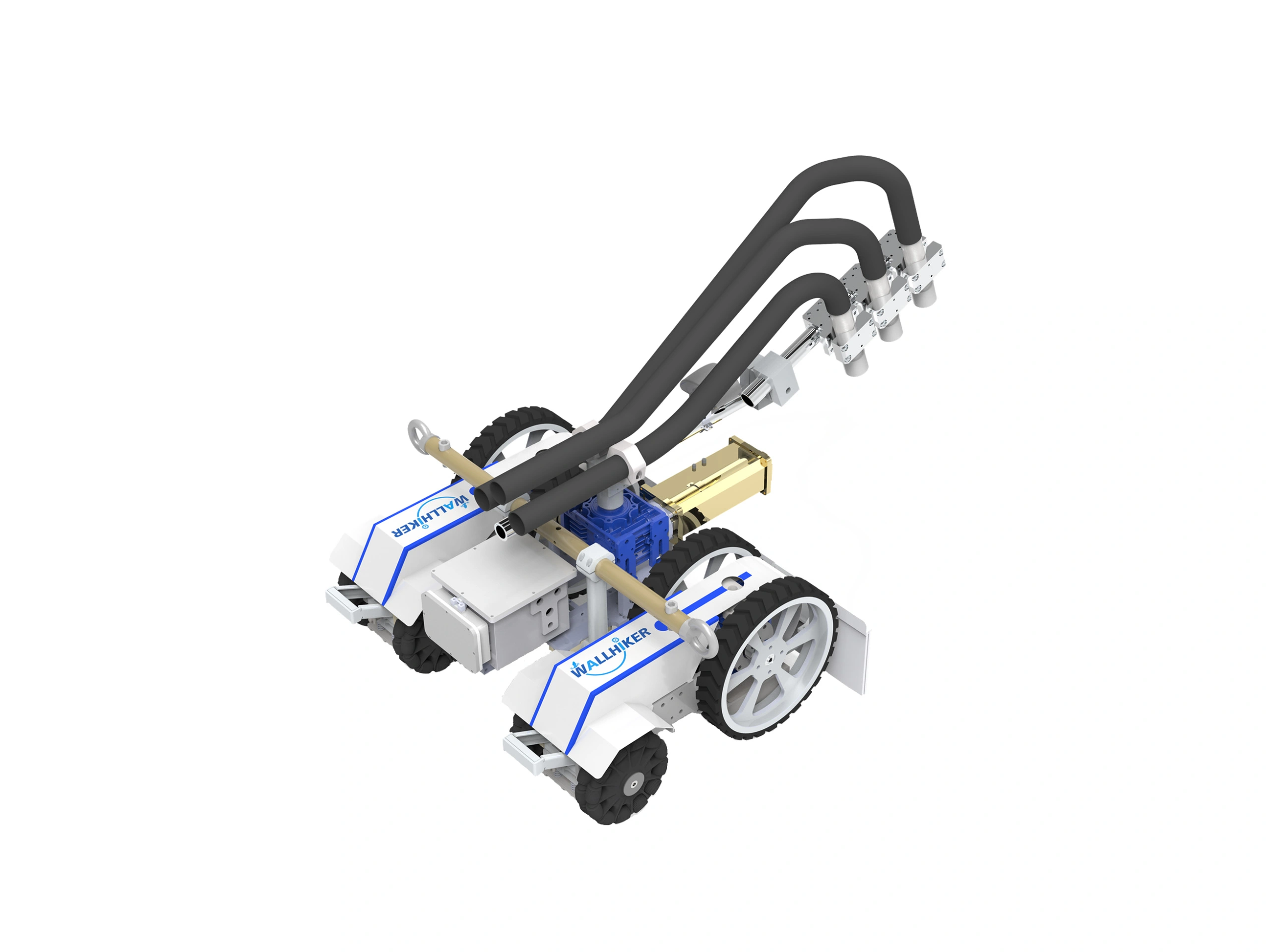

WallHiker W-04

Sandblasting robot

  • dimension 1175x840x500mm
  • blasting width 50-150mm
  • up to 50m2/hours

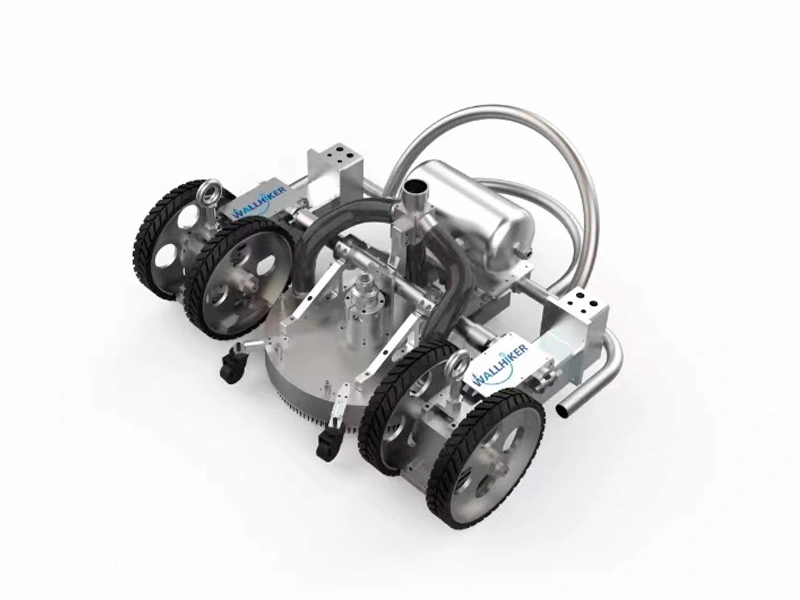

WallHiker PR-04 Sandblasting Magnetic Crawler Robot
WallHiker PR-04

Mini version sandblasting robot

  • dimension 400x490x700mm
  • cleaning width 380mm
  • max water pressure 3000 Bar

Painting Robot

WallHiker TSW-01 is an magnetic painting robot, specially designed for the inner and outer surfaces of the tank with an paint sprayer.

WallHiker TSW-01

Painting robot for tank storage

  • dimension 1050x970x420mm
  • up to 100-300 m2/hours

Cleaning Robot

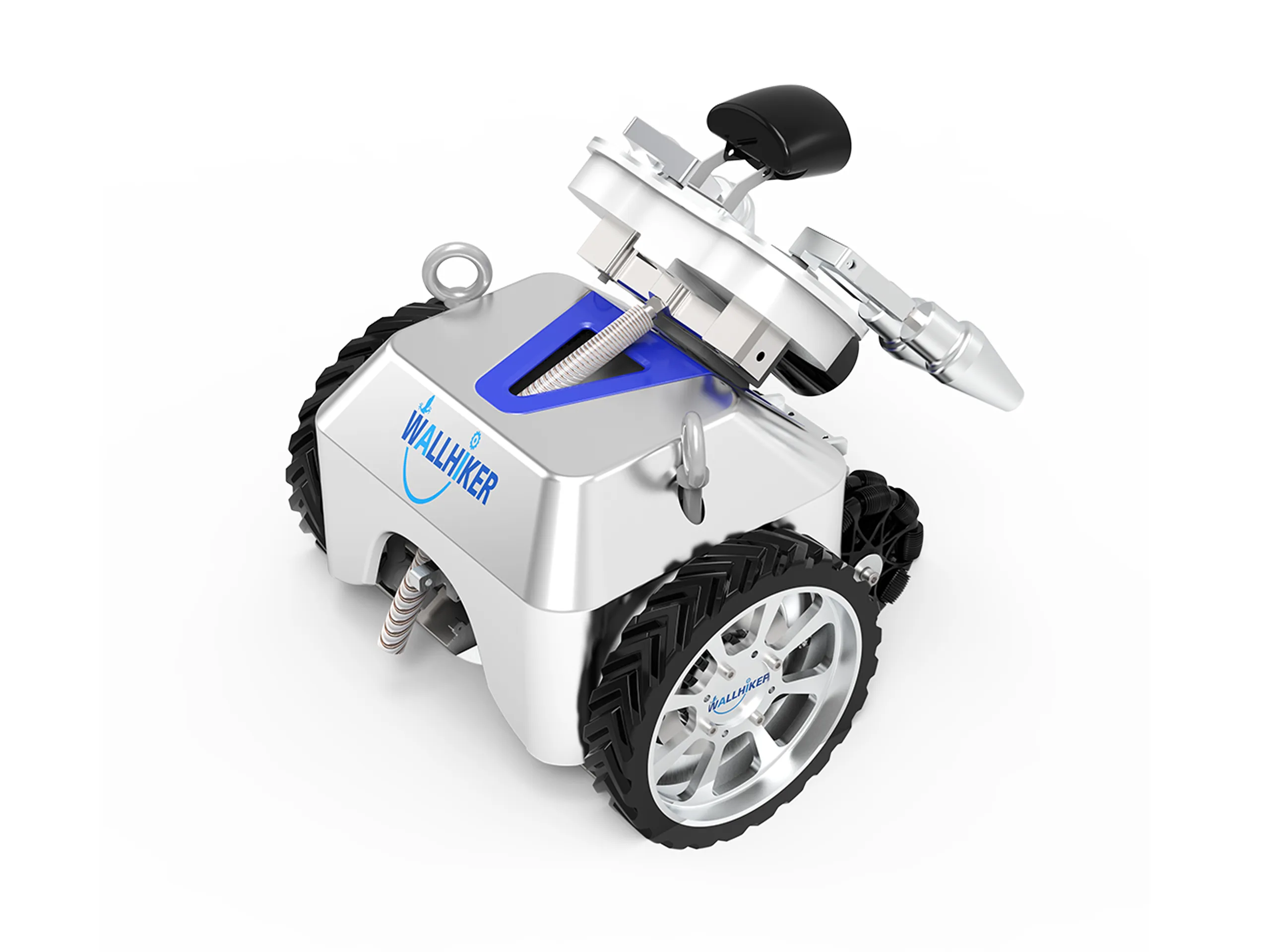

WallHiker CH-02

High pressure water cleaning robot for tank cleaning, cargo hold cleaning, ship hull cleaning ect.

  • dimension 450x460x410mm
  • up to 800 m2/hours
  • up to 500bar water pressure

Wind Turbine Tower Maintenance

Wind turbine tower cleaning and repairing robot

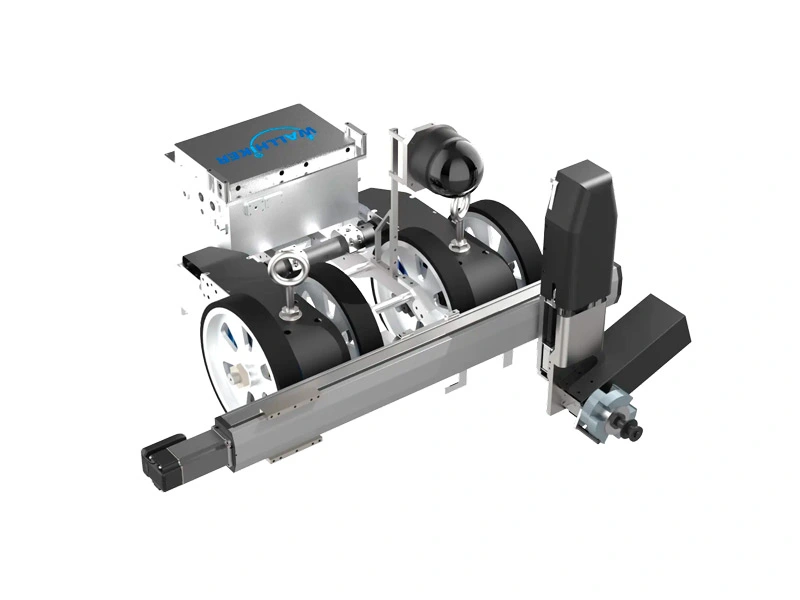

WallHiker WP-02 Wind Turbine Tower Restoration Robot
WallHiker WP-02

Sanding tower corrosion and repainting

  • dimension 1070x1070x530mm
  • operation height 150+m
  • sanding speed 2-6 m2/hour, painting 80-100m2/hour
WallHiker WP-05

Powerful brush cleaning turbine tower

  • dimension 2200x1100x1600mm
  • tower diameter 2-7meters
